Qualities, quantities & types of Molding sand


constituents, qualities and quantities of molding sand under natural and silica sand used in forging manufacturing workshop

MOLDING SAND

The common sources of collecting foundry sands are rivers, lakes, seas and deserts. All the foundry sands can be mainly grouped as:

1. Natural sand:

Which contains sufficient amount of binding clay and therefore no more binder is required to be added to them.

2. Silica sand:

Which do not possess the clay content and need addition of a suitable binder to make them usable for foundry work. They are also sometimes called sharp sands. They when mixed with some other constituents like binders and additives are also known as synthetic sands.



QUALITIES OF SAND

Refractoriness:


refractoriness quality in molding sand used in foundry manufacturing workshop
It is that property of the molding stand which enables it to withstand at high temperatures of the molten metal without fusing thus facilitating a clean casting. The extent to which this property needed depends upon the metal which is to be cast.
For example steel is poured at high temperature than cast iron. Similarly cast iron is poured at high temperature than brass. Therefore, the mold for steel casting should have higher degree’s of refractoriness than that used for iron castings and latter should have more refractoriness than the one used for brass casting. If a sand lacks in this property it will fuse on coming in contact with the molten metal, iron stag on the surface of the casting and will spoil  the latter.
The molding sand owes this property largely to the presence of quartz content or silica and the shape and size of its grains. Rough and larger grains lead to higher refractoriness. Similarly, a higher percentage of silica results in greater refractoriness. On the other hand iron oxides, calcium, sodium and potassium reacts chemically, during pouring of metal to form compounds which have very low melting points. Thus their presence in sand reduces its refractoriness. It should therefore be kept as low as possible particularly in those sands which are used in iron and steel foundries.


Permeability:


permeability quality of molding sand used in foundry manufacturing workshop
It is also termed as porosity. It is that property of the sand which allows the gases and steam to escape through the sand mold. When the hot molten metal is poured into the mold a very large volume of gases and steam is formed due to heating of moisture, coal dust, oil and similar other materials present in the sand. If these gases are not allowed to go out they will either make the casting unsound or blast the mold. Therefore, it’s very important property required in the molding sand. It largely depends upon the same grain size, shape and the proportion of the moisture and the clay present in the sand. Rounded grains of uniform size lead to high permeability. This property is also affected by ramming of sand. A soft ramming will increase the permeability and hard ramming will reduce it. In practice it is further increased by applying vent wires in the prepared mold.




Flow ability or plasticity:

It is that property of sand due to which it flows during ramming to all portions of the molding flask, packs properly around the pattern to acquire the desired shape and distributes the ramming pressure evenly to all parts of mold. It increases with addition of clay and water content and reduction of green strength and grain size.


Adhesiveness:

It is that property of sand due to which it is capable of adhering to the surfaces of other materials. It is entirely due to this property that the heavy sand mass is successfully held in a molding flask and manipulated as desired without any danger if its falling out. Similarly, on account of the same property, the gaggers are able to hold bulky sand projections of the mold.



Cohesiveness:

It is that property of the sand due to which its rammed particles bind together firmly and the pattern is withdrawn from the mold without damaging the mold surfaces and edges. Also, due to this property the mold faces get sufficient strength to withstand the pressure of molten metal and do not get washed under this pressure. This property of the sand in green state is known as green bond or green strength and is largely effected by the grain size, clay and moisture content.
When the molten metal is poured into the mold or the latter is backed in an oven, it gets dried due to the evaporation of the moisture. The cohesiveness in the sand grains is still required to give sufficient strength to the mold faces to retain their shape and resist the flow of molten metal into the sand mass. This property in dry state of the sand mold is known as dry bond or dry strength and depends upon grain size, binder and moisture content. The dry strength should however not be allowed to exceed beyond requirement otherwise it will reduce collapsibility and restrict contraction of solidifying metal, resulting in cracks and unsound castings. It is particularly important in case of steel castings and iron castings having thin sections.


Collapsibility:

It is the property due to which the sand mold automatically collapse after solidification of the casting to allow a free contraction of the metal. In absence of this property the contraction of the metal will be hindered by the mold and this will result in tears and cracks in the casting.


Other requirements:

It should be cheap and easily available.
Its coefficient of expansion should be sufficiently low.
It should be reusable to effect economy.
It should not react chemically with the molten metal.
It should not stick to the surface of the casting.




TYPES OF SAND

Green sand:


green sand used in molding sand in foundry manufacturing workshop



It is also known as tempered sand. It denotes a well prepared foundry sand which contains just enough moisture to give it sufficient bond. Molds in this sand are known as green sand molds and do not require any baking before pouring the molten metal into them.





Dry sand:


dry sand used in molding sand in foundry manufacturing workshop



This term indicates that molding sand which was originally having excess moisture content but the same has been evaporated from it by drying its mold in a suitable oven.







Facing sand:


facing sand used in molding sand in foundry manufacturing workshop


It is also known as fat sand. These terms are used for that sand which forms the face of the mold i.e. rammed around the pattern surface. It is nothing but the fresh prepared and well tempered foundry sand. Initial coating around the pattern surface is given by this sand and the remainder of the flask is filled with floor sand to effect economy.





Parting sand:


parting sand used in molding sand in foundry manufacturing workshop


This term denotes that sand which is sprinkled on the pattern and the parting surfaces of the mold so that the sand mass of one flask does not stick to that of the other or to the pattern. The burnt sand and dry silica sand are used for this purpose.






Floor, black or baking sand:


floor or black or baking sand used in molding sand in foundry manufacturing workshop
These are interchangeable terms and all denote the used sand which is left on the floor after the castings have been removed from the mold.
Before, reusing, it is riddled to remove foreign material like nails and fins etc. and then used for filling the bulk of the molding flask after the facing sand has been rammed around the pattern.
In modern mechanized foundries, however, no facing sand is prepared separately, but the entire floor sand is riddled, added with binder and proper additives and properly tempered for being used again. Such a sand is called unit sand.


Core sand:

core sand used in molding sand in foundry manufacturing workshop


The sand which carries a high silica content and is used for making cores.






Oil sand:


oil sand used in molding sand in foundry manufacturing workshop




Silica sand using oil binders .








Molasses sand:


molasses sand used in molding sand in foundry manufacturing workshop



This term denotes the sand which carries molasses as binder. It is very useful for making molds of small castings having intricate shapes and thin sections. Also it is used as core sand.








MAIN CONSTITUENT OF MOULDING SAND


The principle content of moulding sand are:
1. Silica sand
2. Binder
3. Additives
4. Water

silica sand as main constituents of molding sand used in foundry manufacturing workshop



Details of silica sand, their grain size and shape and their effect on the characteristics of molding sand has already been discussed earlier. Description of other constituents will follow in the forthcoming articles.







Binders:

The purpose of adding a binder to the molding sand is to impart it sufficient strength and cohesiveness so as to enable to retain its shape after the mold has been rammed and the pattern withdrawn. However, it produces an adverse effect on the permeability of the sand mold.
The common binders used in foundry can be grouped as:
1. Organic binders.
2. Inorganic binders.

organic binders as main constituents of molding sand used in foundry manufacturing workshop

Organic binders find their specific use in core making. The common binders coming in this category are:
Dextrin
Molasses
Linseed oil
Cereal binders
Pitch-upto 2% max.
Resins, like phenol and urea formaldehydes

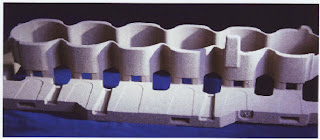

inorganic binders as main constituents of molding sand used in foundry manufacturing workshop

In the Inorganic group the common binders are clay, sodium silicate and Portland cement. Out of all these, the clay binders are commonly used.
The following types of clays are commonly used:
Bentonite
Kaolonite
Limonite
Ball clay
Fire clay
Fuller’s earth

Out of the above six varities Bentonite is most widely used. In our country its deposits are found in Bihar, Rajasthan and Kashmir.



Additives:

Additives are those materials which are added to the molding sand to improve some of the existing properties or to impart certain new properties to it. The commonly used additives are:

a. Coal dust:


coal dust additives as main constituents of molding sand used in foundry manufacturing workshop



It is mainly used in the sand used for grey iron and malleable iron castings. Its main purpose is to react chemically with the oxygen present in the sand pores and thus produce a reducing atmosphere at mold-metal interface and prevents oxidation of the metal. For this reason its major portion is added in the facing sand. It, however, reduces the cohesiveness and strength of the sand.







b. Seal coal:


seal coal additives as main constituents of molding sand used in foundry manufacturing workshop

It is finely ground soft coal and is vastly used in sand used for grey and malleable iron castings. It restricts the mold wall movements and improve surface finish. It reduces permeability and hot strength of the mold and requires a high percentage of water in the sand. Its portion varies from 2-8%.







c. Cereals or corn flour:


cereals or corn flour additives as main constituents of molding sand used in foundry manufacturing workshop



It promotes mold wall movement by being moultalised by heat  reduces expansion defects, improves strengths, toughness and collapsibility of the sand and decreases permeability and flow ability. Its proportion in the sand varies from 0.25-2.0%.








d. Silica flour:

silica flour additives as main constituents of molding sand used in foundry manufacturing workshop





It increases hot strength, decreases metal penetration into the mold, reduces expansion defects and improves surface finish. It may be added upto 35%.






e. Wood flour:


wood flour additives as main constituents of molding sand used in foundry manufacturing workshop




It promotes mold wall movement, reduces expansion defects, increases collapse ability improves surface finish and thermal stability of the mold. It may be added from 0.5-2.0% or even more.













f. Pitch:

It improves hot strength and surface finish on ferrous castings. It can be advantageously added upto 2.0%. if a higher proportion is added it will reduce green strength.


g. Dextrin and molasses:

dextrin and molasses additives as main constituents of molding sand used in foundry manufacturing workshop





There addition increases the dry strength of the sand. In other respects they behave more or less like corm flour.










h. Fuel oil:


fuel oil additives as main constituents of molding sand used in foundry manufacturing workshop





It’s addition is sometimes done in order to reduce the requirement of free water in the sand.








Water


water as main constituents of molding sand used in foundry manufacturing workshop
The clay contents added to the foundry sand will not give the required strength and bond until a suitable quantity of water is added to it. This quantity of water varies from 2-8% according to different requirements. The water content present int eh stand masses partly in mixed from called pour water and partly in the free state known as free water. When water is added to the clay it starts filling into the pores of the clay where it forms a sort of micro film. This water content is held rigidly by the clay and it is mainly responsible for enabling the clay to impart the desired strength to the sand. The quality of bond and the capacity of clay for providing the bond will mainly depend upon the thickness of water film that it can hold.
When more water is added to the clay mixture than the amount as pour water, it remains as a fluid and is held between the clay particles separating them. It has been found that this excess amount of free water act as lubricant and thus improves the mould ability and plasticity of the moulding sand. It however, reduces the strength of the mixture and thus weakens the mould.
